Description

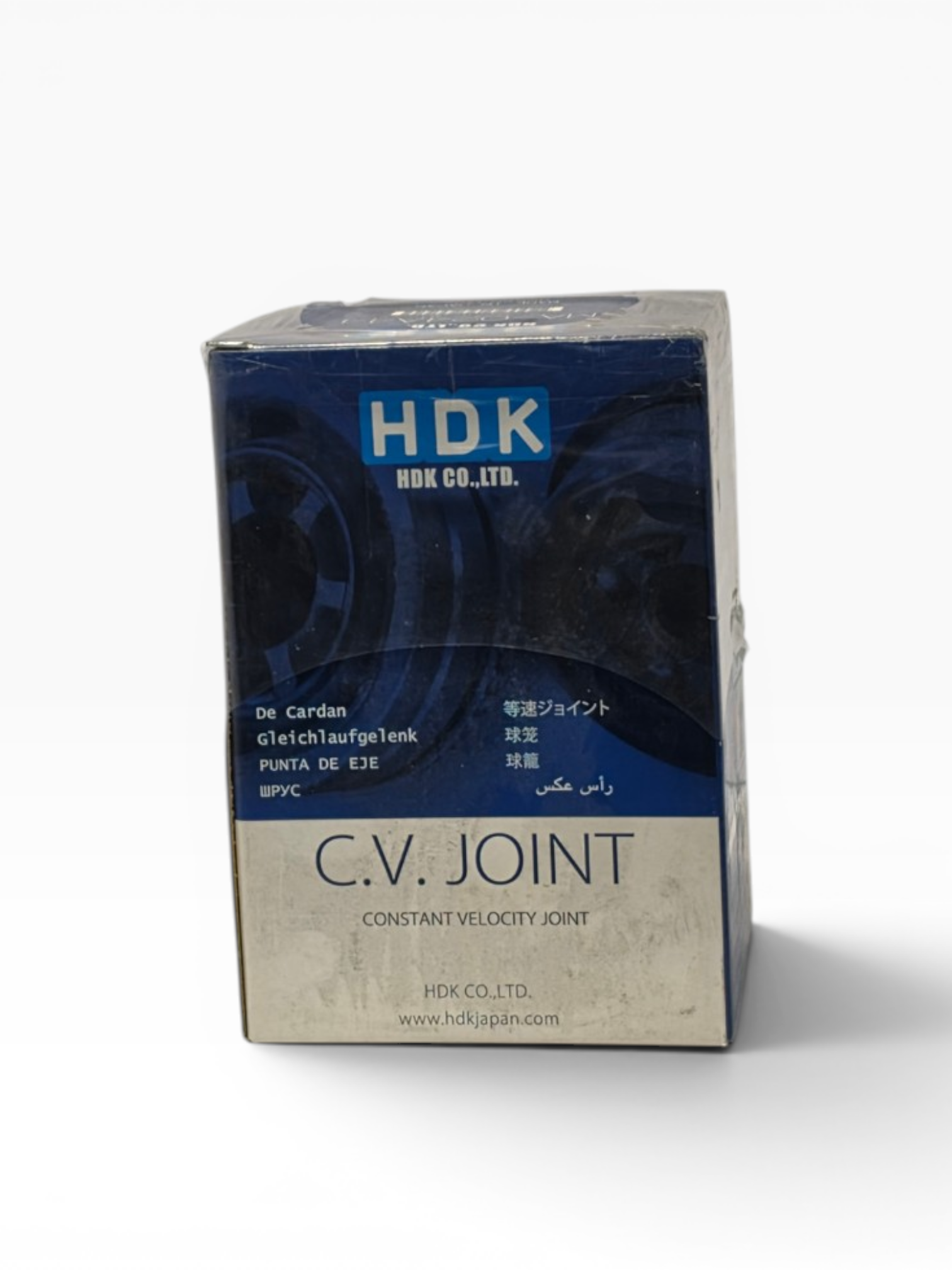

Outer CV joint for the Honda Accord, with the ABS ring. HDK part number HO-22A50, one joint to a box.

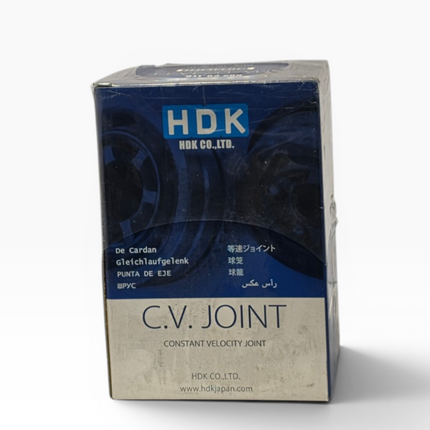

Never fitted, never turned. The carton is storage aged. The joint inside is as it left the factory.
This is the ABS version. The A50 on the end of the number means it carries a 50 tooth ABS ring. HDK also make a plain HO-22 without the ring. If your car has ABS sensors at the front hubs, this is the one to use.
Specification
- Inner spline, on the driveshaft: 32 teeth.
- Outer spline, into the hub: 28 teeth.
- Seal diameter: 60mm.
- ABS ring: 50 teeth.
Count the splines on your old joint. That is the surest way to match a CV joint.
Other numbers for the same joint are Febest 0310-022A50, ASVA HN-22A50 and Lynx CO-3402A.
Fitment
Honda Accord CB series, 1989 to 1993, including the CB1 1.8, CB3 2.0 and CB7 2.2. Also the CC, CD and CE Accord, 1993 to 1998. It is listed for the Ascot, the Inspire and the Prelude from 1991 too. Front outer, left or right. Send us your rego and we will confirm.
Fitting
- Fit a new boot and clamps with the new joint.
- Pack the joint with fresh CV grease.
- Check the ABS ring is clean and the sensor sits at the right gap.
- Torque the hub nut to the factory figure and stake it.
- Best fitted by a qualified mechanic.
