Mazda 323, Ford Laser Outer CV Joint with ABS Ring - HDK MA-008A44

Description

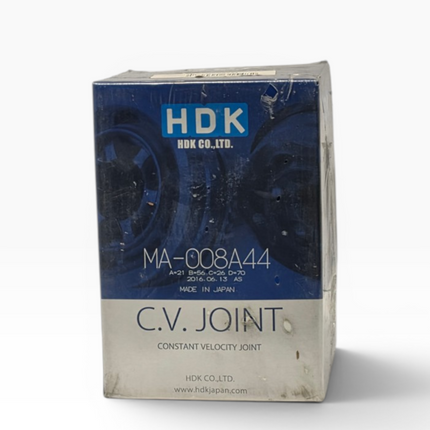

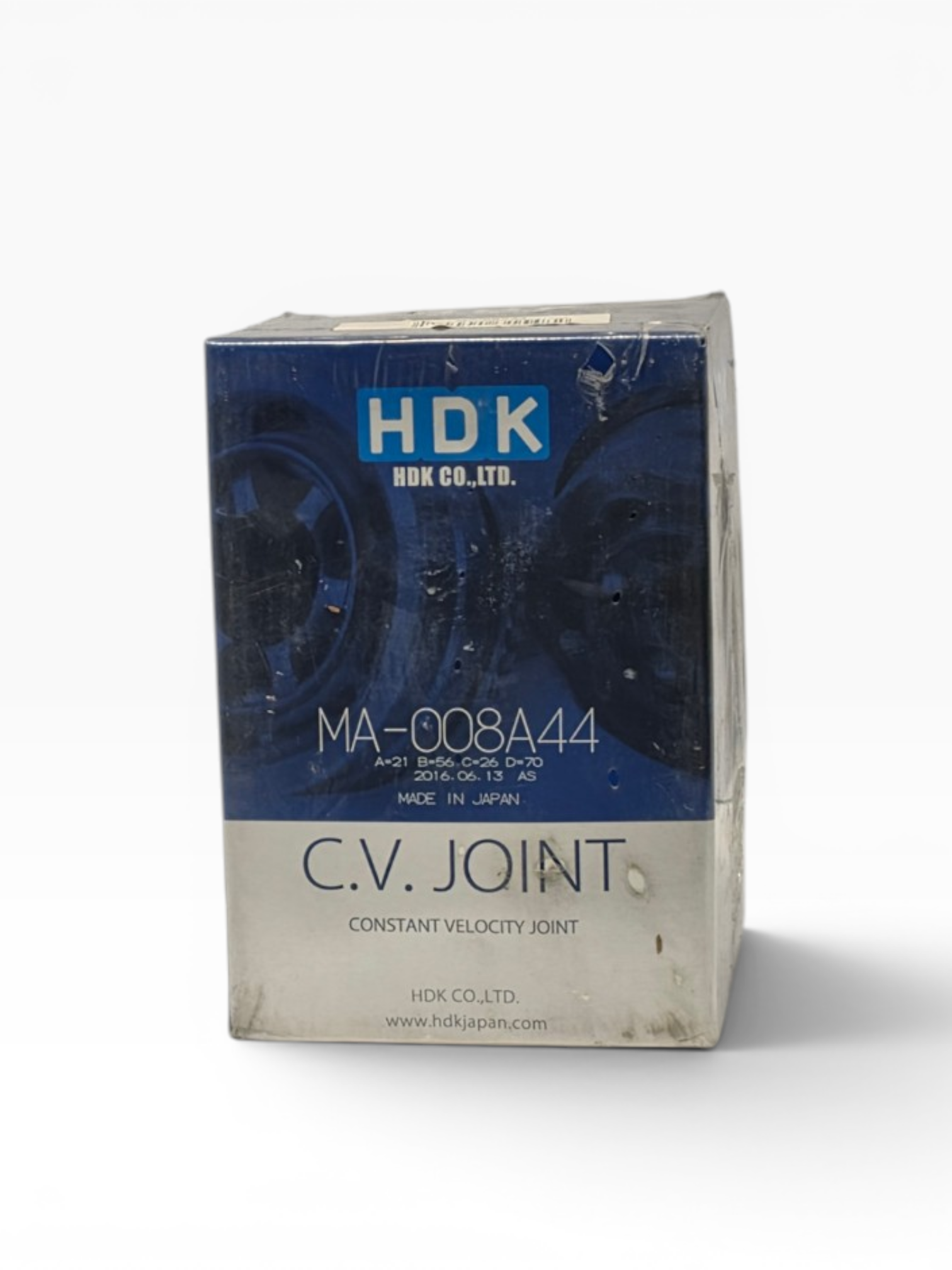

ABS outer CV joint for the Mazda 323 and Ford Laser. HDK MA-008A44, made in Japan, one joint to a box.

Still in its shrink wrap and never fitted. The carton has aged underneath it.

Sizes off the label: A=21, B=56, C=26, D=70. In plain words, 21 teeth inside, a 56 mm seal, 26 outer spline teeth. The A44 is a 44 tooth ABS ring.

That spline and seal size matches the outer joint on the Mazda 323 BG era cars. The Ford Laser of the same era shares that base. This is the version with the ring.

Count the teeth. Mazda fitted several outer joints to these cars. Check the spline count on yours and look for an ABS ring before you order. Or send us the plate and we will look it up.

Fitment

Mazda 323 and Ford Laser with ABS, matched by spline and seal size. Send the rego and we will confirm the fit.

Fitting

  • Wipe the shaft splines down and use the new circlip.
  • Grease the joint, then the boot and clamps.
  • Axle nut to the factory figure, then stake or pin it.
  • Check the ABS light before it goes on the road, and use full lock both ways.
  • Best fitted by a qualified mechanic.

Mazda 323, Ford Laser Outer CV Joint with ABS Ring - HDK MA-008A44

Product form

ABS outer CV joint for the Mazda 323 and Ford Laser. HDK MA-008A44, made in Japan, one joint to a... Read more

1 in stock Dispatch in 1–3 business days

$129.90 Incl. VAT

    • Guaranteed secure & safe checkout. NZ owned & operated.

      shop pay
    • Free shipping on orders of $100 or more
    • Consumer Guarantees Act protection on every order

    Description

    ABS outer CV joint for the Mazda 323 and Ford Laser. HDK MA-008A44, made in Japan, one joint to a box.

    Still in its shrink wrap and never fitted. The carton has aged underneath it.

    Sizes off the label: A=21, B=56, C=26, D=70. In plain words, 21 teeth inside, a 56 mm seal, 26 outer spline teeth. The A44 is a 44 tooth ABS ring.

    That spline and seal size matches the outer joint on the Mazda 323 BG era cars. The Ford Laser of the same era shares that base. This is the version with the ring.

    Count the teeth. Mazda fitted several outer joints to these cars. Check the spline count on yours and look for an ABS ring before you order. Or send us the plate and we will look it up.

    Fitment

    Mazda 323 and Ford Laser with ABS, matched by spline and seal size. Send the rego and we will confirm the fit.

    Fitting

    • Wipe the shaft splines down and use the new circlip.
    • Grease the joint, then the boot and clamps.
    • Axle nut to the factory figure, then stake or pin it.
    • Check the ABS light before it goes on the road, and use full lock both ways.
    • Best fitted by a qualified mechanic.
