Mazda 26/28 Spline 56 mm Outer CV Joint - HDK MA-010

Description

Mazda outer CV joint, HDK MA-010. MA is the HDK code for Mazda.

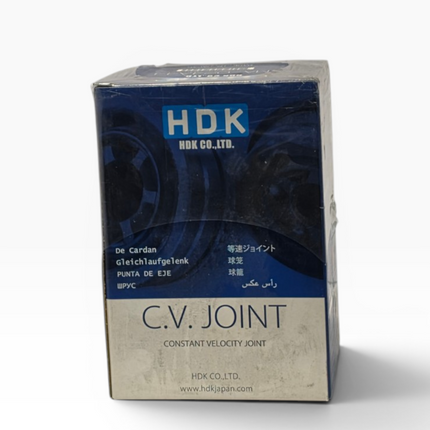

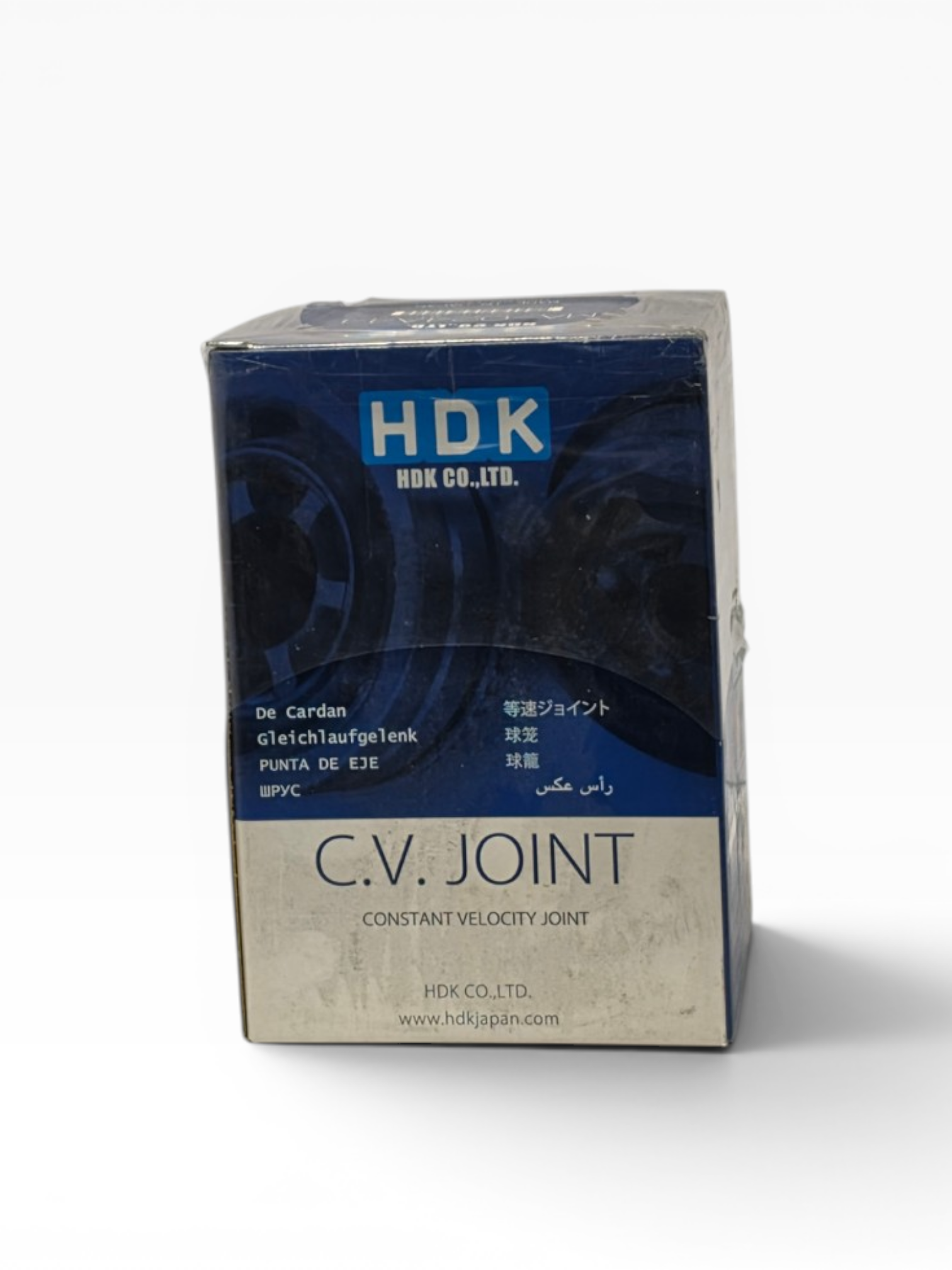

Old stock in the original box. Never fitted to anything.

No car is printed on the box, only the sizes. The label reads A=26, B=56, C=28, D=78. That is 26 teeth inside, a 56 mm seal, 28 outer spline teeth and a 78 mm body. No ring on this joint.

This one is sold on size. Count the teeth on the joint you are pulling off and measure the seal and the body. If those three match, so does this. Send us your rego if you would rather we checked.

Fitting

  • Give the shaft splines a wire brush before anything goes on.
  • Use the full sachet of grease if one came with your boot kit.
  • Do the axle nut up to the book figure.
  • A clicking noise on lock means the joint is not seated or not right.
  • Best fitted by a qualified mechanic.

Mazda 26/28 Spline 56 mm Outer CV Joint - HDK MA-010

Product form

Mazda outer CV joint, HDK MA-010. MA is the HDK code for Mazda.Old stock in the original box. Never fitted... Read more

3 in stock Dispatch in 1–3 business days

$89.00 Incl. VAT

    • Guaranteed secure & safe checkout. NZ owned & operated.

      shop pay
    • Free shipping on orders of $100 or more
    • Consumer Guarantees Act protection on every order

    Description

    Mazda outer CV joint, HDK MA-010. MA is the HDK code for Mazda.

    Old stock in the original box. Never fitted to anything.

    No car is printed on the box, only the sizes. The label reads A=26, B=56, C=28, D=78. That is 26 teeth inside, a 56 mm seal, 28 outer spline teeth and a 78 mm body. No ring on this joint.

    This one is sold on size. Count the teeth on the joint you are pulling off and measure the seal and the body. If those three match, so does this. Send us your rego if you would rather we checked.

    Fitting

    • Give the shaft splines a wire brush before anything goes on.
    • Use the full sachet of grease if one came with your boot kit.
    • Do the axle nut up to the book figure.
    • A clicking noise on lock means the joint is not seated or not right.
    • Best fitted by a qualified mechanic.
