Mazda Familia 323 BJ Premacy Outer CV Joint ABS - HDK MA-045A44

Description

ABS outer CV joint for the Mazda 323 BJ, Familia and Premacy. HDK MA-045A44.

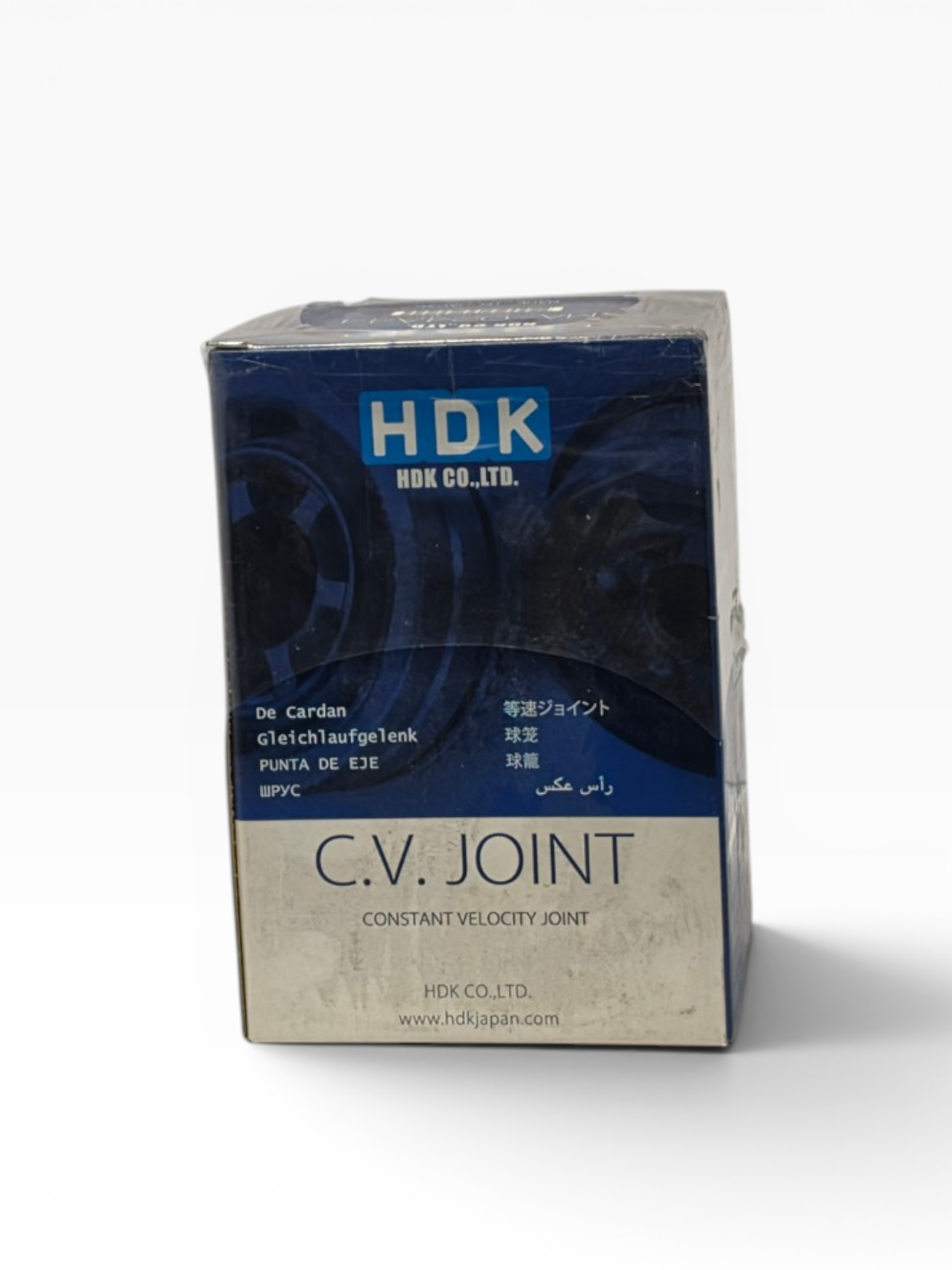

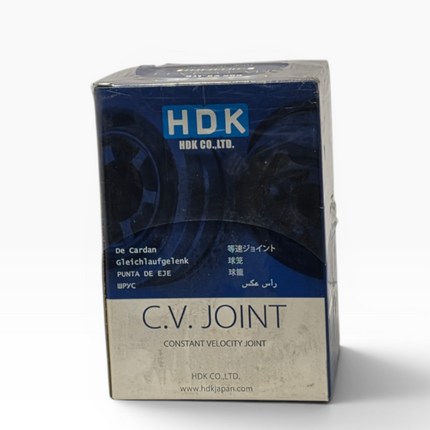

Never been on a car. New old stock, boxed, with the storage marks that come with it.

The label reads A=29, B=56, C=26, D=72. In plain terms, 29 teeth inside, a 56 mm seal, 26 outer spline teeth and a 72 mm body. A44 means it carries a 44 tooth ABS ring.

No car is printed on the box. Parts catalogues put this joint on the Familia and 323 BJ from 1998 to 2004. The Premacy CP from 1999 to 2005 is on the list too.

Not the only joint Mazda used. Count the splines on yours and check for the ABS ring before you order. Or send the rego and we will match it.

Fitting

  • Fresh circlip, splines wiped clean.
  • Grease it, boot on, clamps up.
  • Axle nut done up to the factory setting.
  • Check the 44 tooth ring for dirt before the sensor goes near it.
  • Best fitted by a qualified mechanic.

Mazda Familia 323 BJ Premacy Outer CV Joint ABS - HDK MA-045A44

Product form

ABS outer CV joint for the Mazda 323 BJ, Familia and Premacy. HDK MA-045A44.Never been on a car. New old... Read more

1 in stock Dispatch in 1–3 business days

$89.00 Incl. VAT

    • Guaranteed secure & safe checkout. NZ owned & operated.

      shop pay
    • Free shipping on orders of $100 or more
    • Consumer Guarantees Act protection on every order

    Description

    ABS outer CV joint for the Mazda 323 BJ, Familia and Premacy. HDK MA-045A44.

    Never been on a car. New old stock, boxed, with the storage marks that come with it.

    The label reads A=29, B=56, C=26, D=72. In plain terms, 29 teeth inside, a 56 mm seal, 26 outer spline teeth and a 72 mm body. A44 means it carries a 44 tooth ABS ring.

    No car is printed on the box. Parts catalogues put this joint on the Familia and 323 BJ from 1998 to 2004. The Premacy CP from 1999 to 2005 is on the list too.

    Not the only joint Mazda used. Count the splines on yours and check for the ABS ring before you order. Or send the rego and we will match it.

    Fitting

    • Fresh circlip, splines wiped clean.
    • Grease it, boot on, clamps up.
    • Axle nut done up to the factory setting.
    • Check the 44 tooth ring for dirt before the sensor goes near it.
    • Best fitted by a qualified mechanic.
