Description
Outer CV joint for the 4WD Galant and Legnum V6. HDK MI-034A43, made in Japan, one joint to a box.

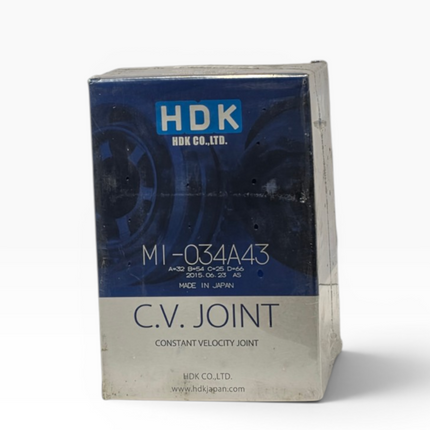

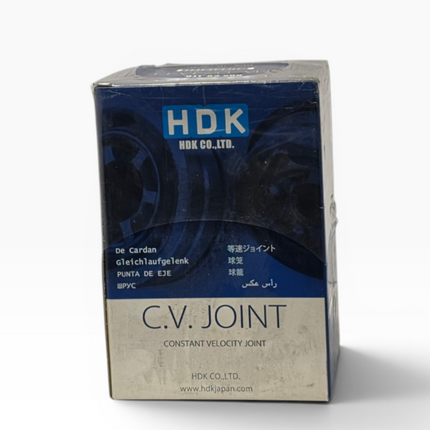

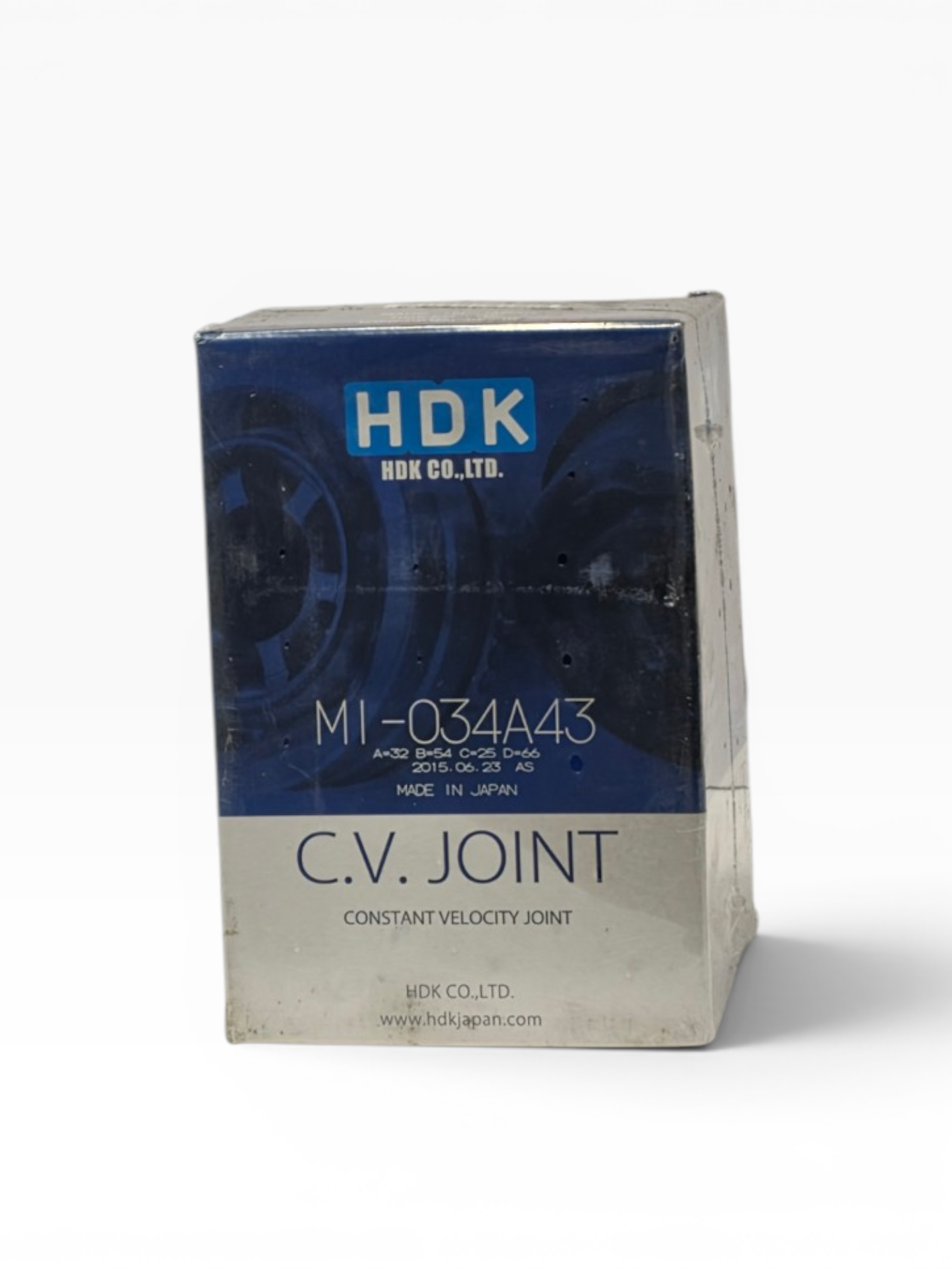

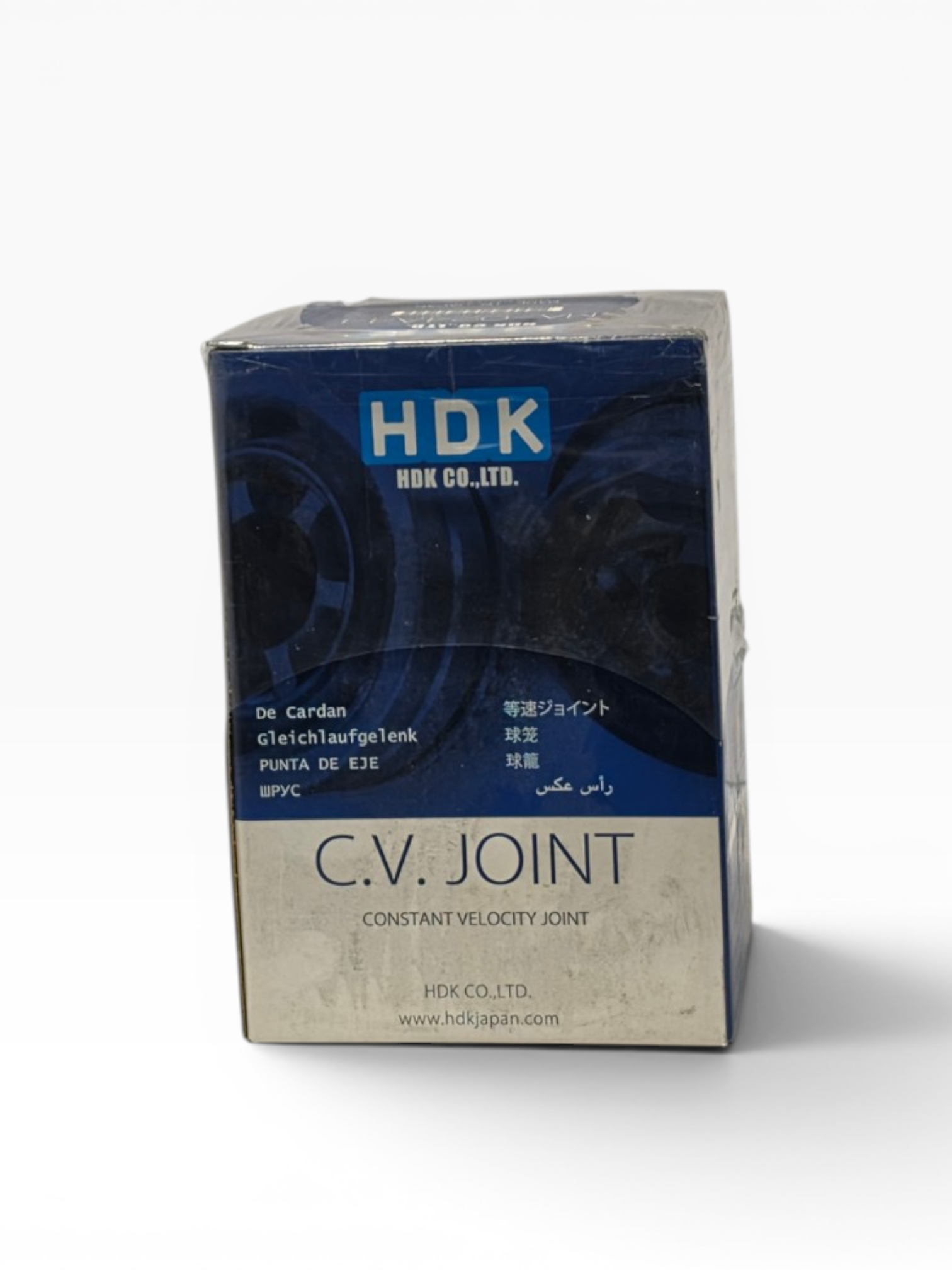

Shrink wrap still on it. Never fitted. The carton underneath shows its age.
The label gives A=32, B=54, C=25, D=66. Size catalogues read that as 32 teeth inside, a 54 mm seal and 25 outer spline teeth. The A43 means a 43 tooth ABS ring.
MI-034A43 is listed for the Galant EC5A and Legnum EC5W. That is the 2.5 V6 6A13 with four wheel drive, from 1996.
4WD only. The front wheel drive Galant and Legnum take a different joint. Count the splines and check the ring. Or send the rego and we will look.
Fitment
Mitsubishi Galant EC5A and Legnum EC5W, 2.5 V6 6A13, 4WD, 1996 on, front outer. Send your rego through for confirmation.
Fitting
- Clean splines, new circlip in place.
- Pack with CV grease, fit the boot, pull the clamps up.
- On a 4WD, do the nut up with the weight on the wheels.
- Check the ABS light, then drive it on full lock.
- Best fitted by a qualified mechanic.
