Description
ABS outer CV joint for the Nissan Wingroad and AD Y11. HDK NI-017A42, also written NI-17A42, made in Japan.
New old stock. Never on a car. The box has done all the ageing.

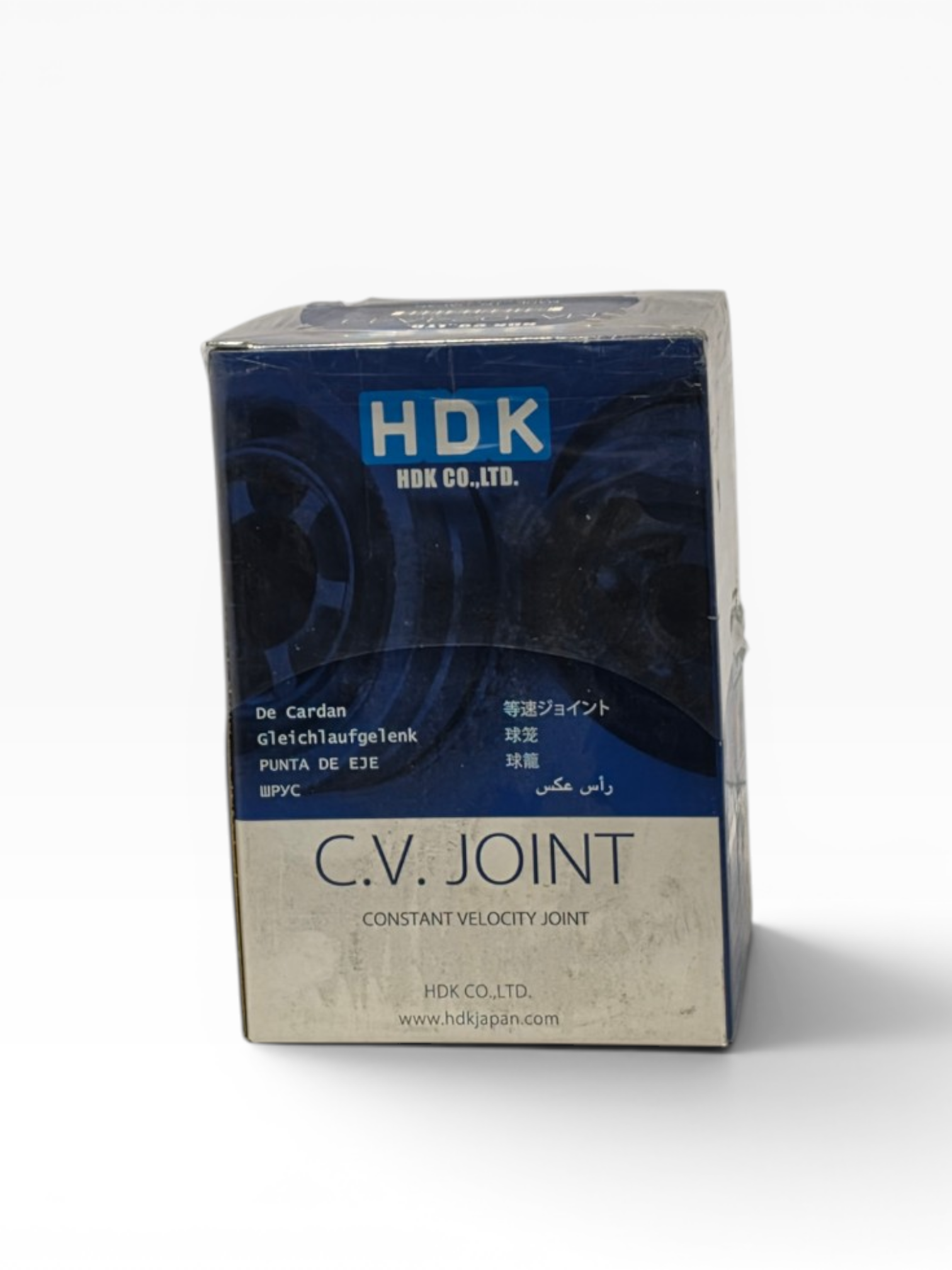

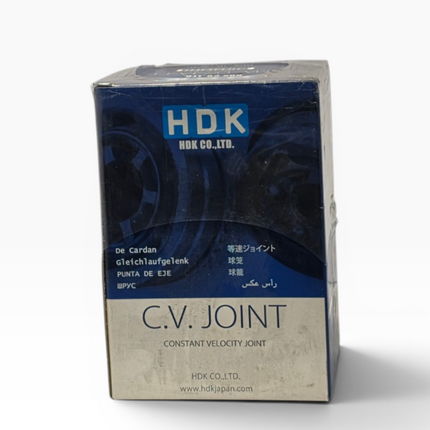

Sizes are printed on the HDK box. 23 teeth inside, a 55 mm seal, 25 outer spline teeth, a 68 mm body and about 169 mm long. A42 means a 42 tooth ABS ring.
Febest lists its equivalent, 0210-017A42, against HDK NI-17A42 for these cars:
- Nissan Wingroad and AD Y11, 1999 to 2005.
- Nissan Sunny B14 and B15, and Bluebird Sylphy G10.
- Nissan Pulsar N14, N15 and N16.
- Nissan Presea R10 and R11, and the older Wingroad and AD Y10.
Rings vary across this lot. Some of these cars take no ring at all and some take a different count. Check yours and count the teeth. Or send the rego and let us do it.
Fitting
- Clean splines, circlip out of the box, seated properly in the groove.
- Grease the cage and fill the boot before it goes together.
- Axle nut to the Nissan torque for a Y11.
- Check the 42 tooth ring is clear of muck, then road test it.
- Best fitted by a qualified mechanic.
