Description
Outer CV joint for the Nissan Primera P11 and Bluebird U14. HDK NI-034, also written NI-34, made in Japan.
Boxed since it left the factory and never fitted. Only the carton shows its age.

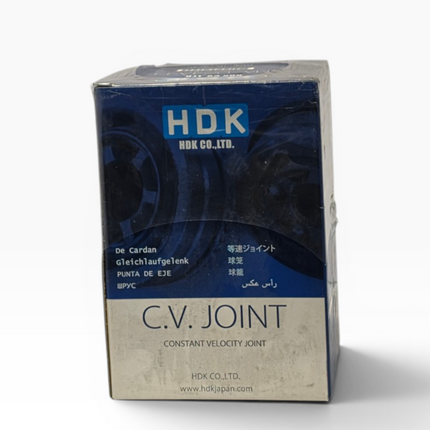

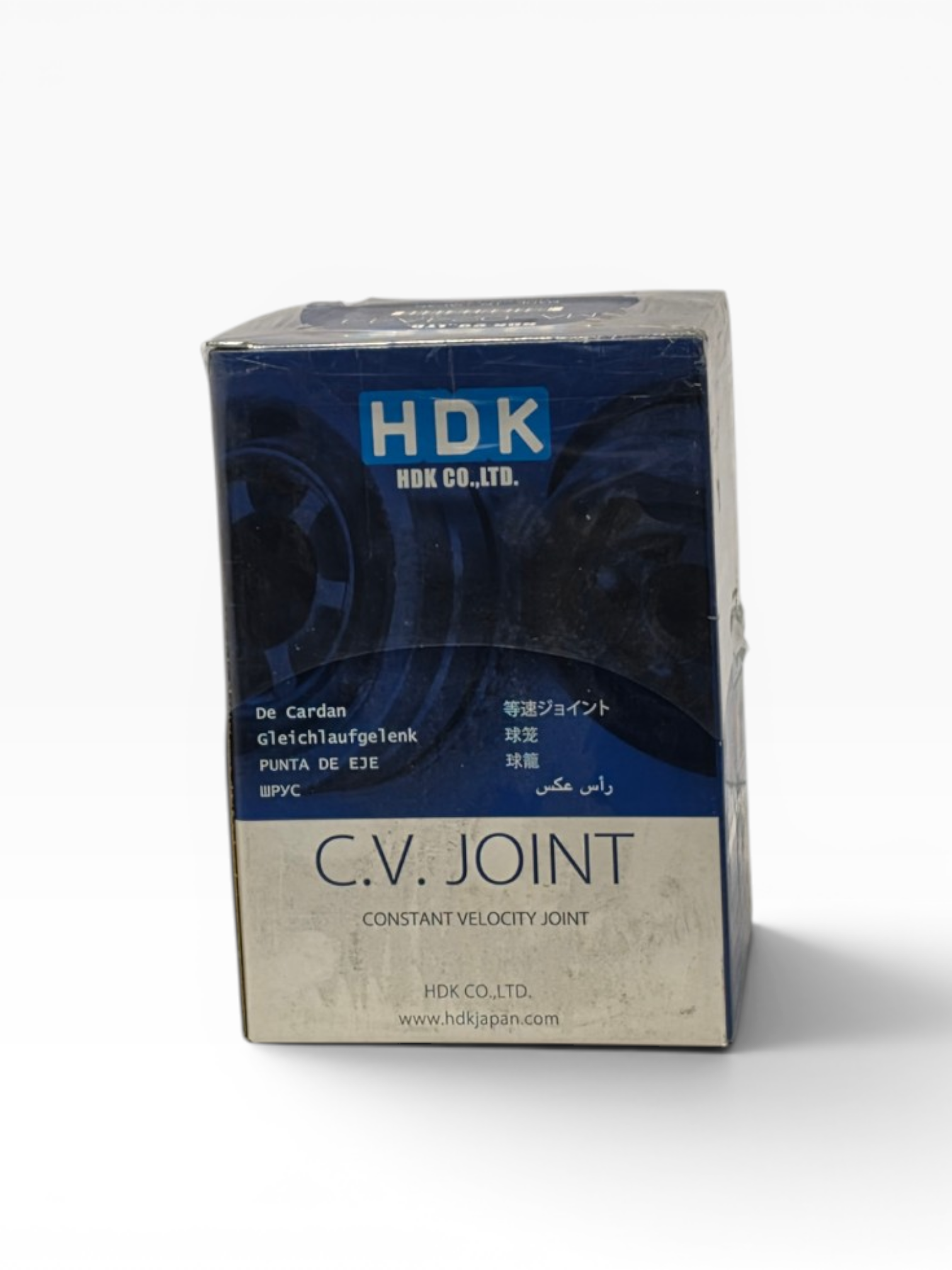

Size is on the HDK box. 23 teeth inside, a 56 mm seal, 27 outer spline teeth and a 77 mm body. This one carries no ABS ring.
Parts catalogues list NI-034 for the Primera and Bluebird. Its matching ABS joint, Febest 0210-034A44, is listed for:
- Nissan Primera P11 1.8 and 2.0, 1996 to 2001.
- Nissan Primera P10 2.0 4WD.
- Nissan Bluebird U13 and U14, 1.8 and 2.0.
No ring on this one. Nissan put several joints this size on these cars, and the ABS ones need a ring. Count the teeth on yours and look for one. Or pass us the rego and we will do it.
Fitting
- Splines cleaned back, then the circlip from the box.
- Grease through the cage before the boot goes anywhere near it.
- Axle nut back to the Nissan setting.
- A lap of the block on full lock tells you if it is right.
- Best fitted by a qualified mechanic.
