Description

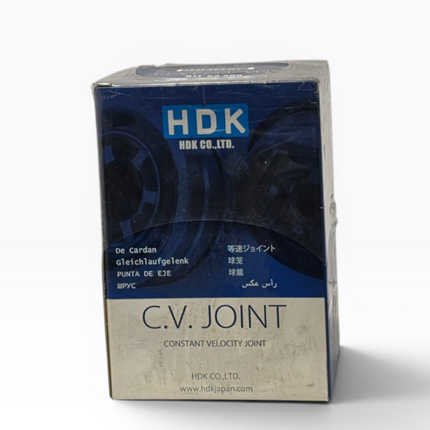

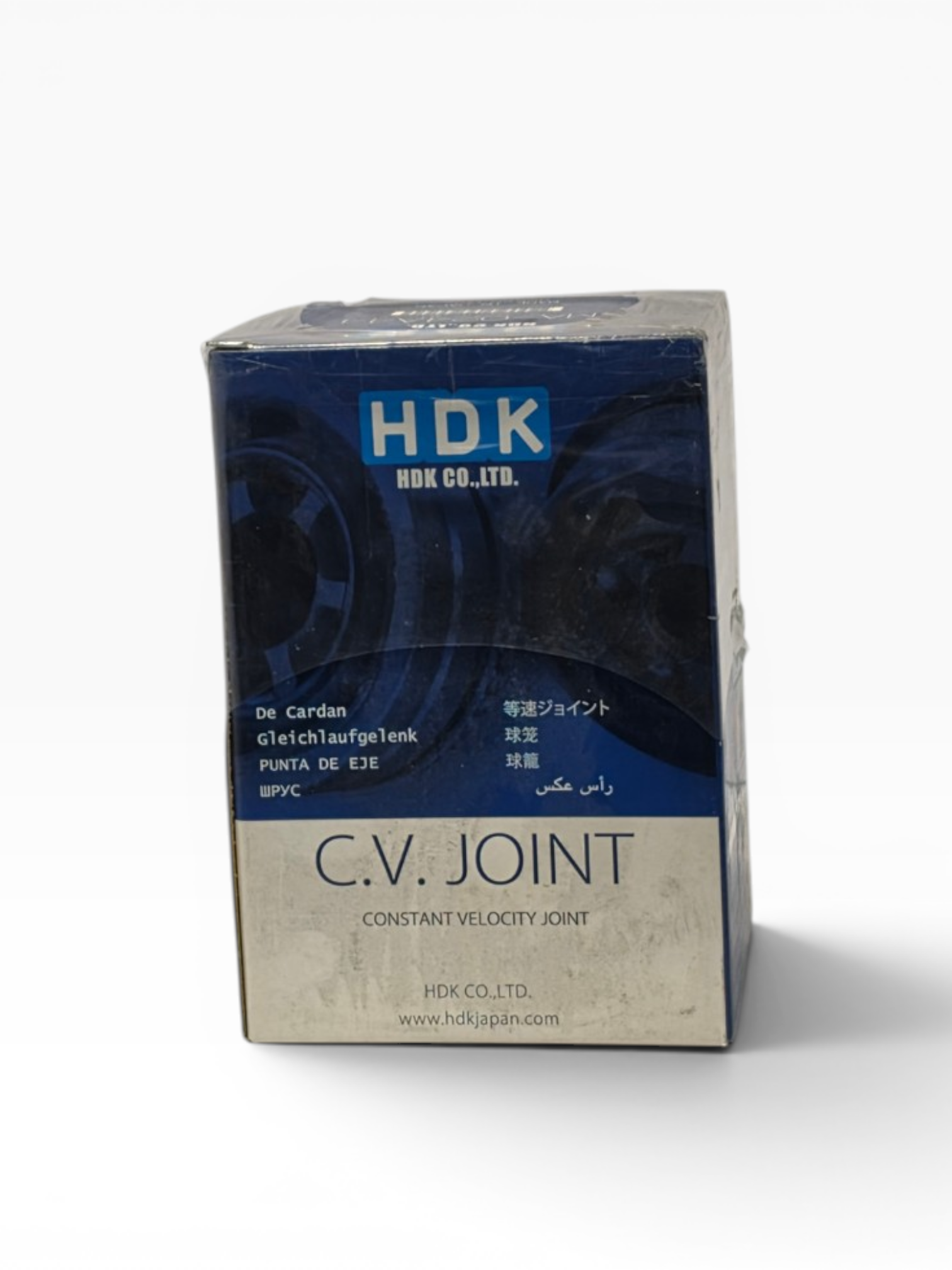

Outer CV joint for the Nissan Cefiro and Maxima A32 and A33. HDK NI-040, also written NI-40.
New old stock. Boxed since new and never fitted.
Size comes off the HDK box. 27 teeth inside, a 56 mm seal, 29 outer spline teeth and a 77 mm body. No ABS ring on it.
Parts catalogues list joints of this size for these cars:
- Nissan Cefiro A32 and A33, including the A32 wagon.
- Nissan Maxima A32 and A33, V6 models.
Three things to compare. Nissan used more than one joint of this size here. They differ in the circlip groove, the axle nut thread and the ABS ring. Check all three against your old one, or send the rego to us.
Fitting
- New circlip, and clean the splines before it goes anywhere near them.
- Pack the grease in by hand, then boot and clamps.
- Axle nut to the torque Nissan give for the V6.
- Take it on full lock both directions once it is together.
- Best fitted by a qualified mechanic.
