Description
ABS outer CV joint for the Nissan Primera P12 and Avenir W11. HDK NI-076A44, also written NI-76A44.

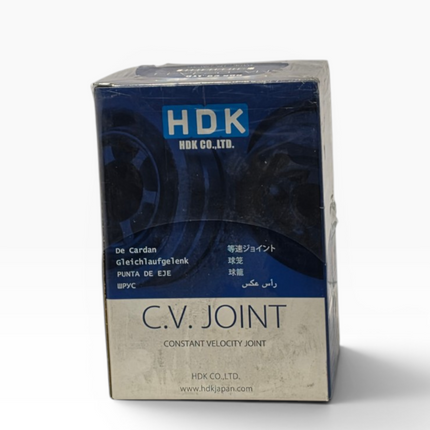

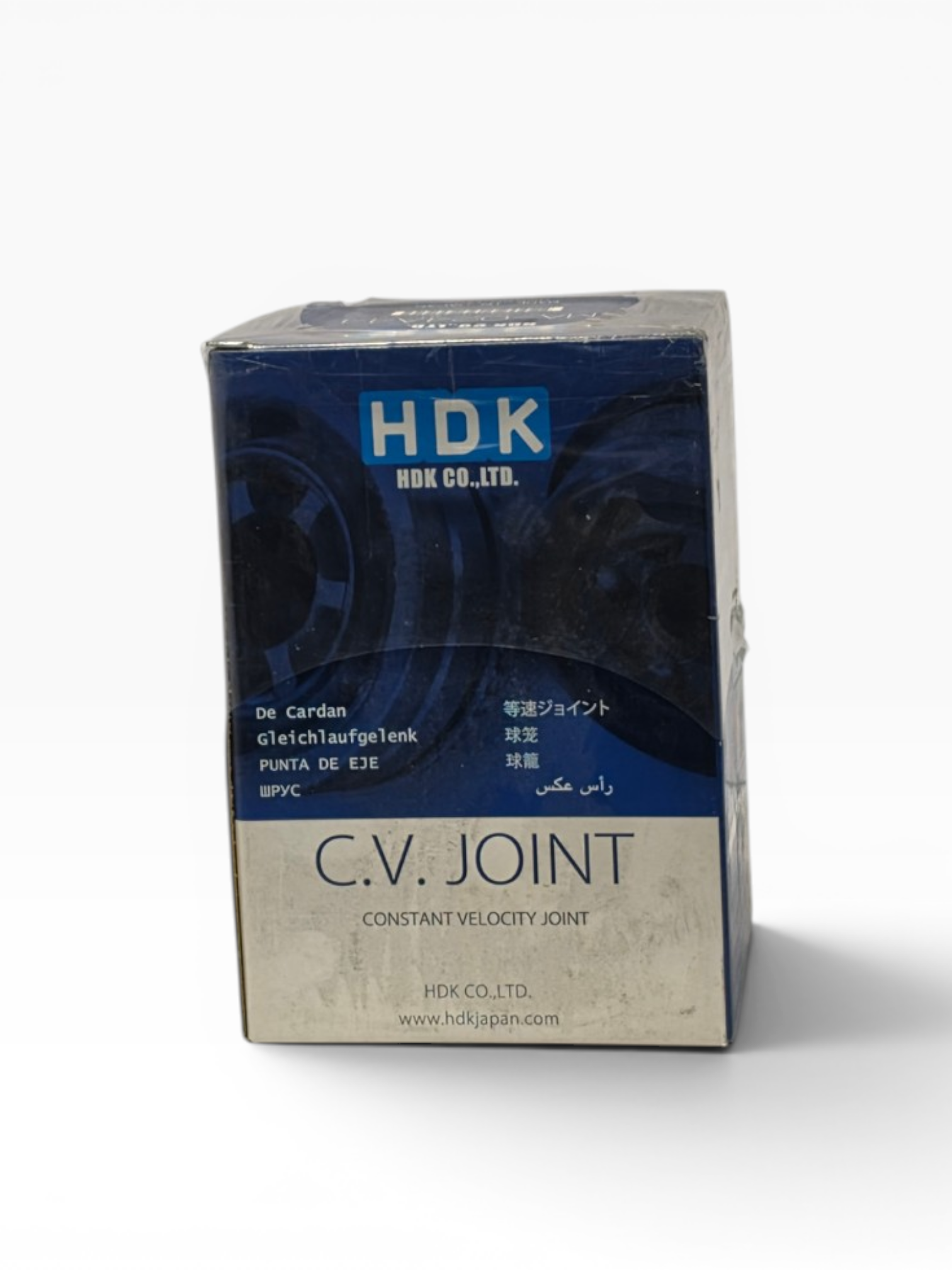

Never fitted. Old stock, carton worn, joint untouched.
Our supplier's records put it on the P12 1.8 from 2002. Inside there are 23 teeth, the seal is 56 mm and the outer spline has 27. The A44 is a 44 tooth ring.
It replaces the genuine Nissan outer joint 39211-5V070. Parts catalogues list the same joint for these cars:
- Nissan Primera P12 sedan and WP12 wagon, 1.6 and 1.8.
- Nissan Avenir W11.
- Nissan Almera Tino V10.
- Nissan Prairie Liberty M12, Presage U30, R'nessa N30 and Serena C24.
Ring and groove. Nissan used several joints this size across these cars, and they differ in the ABS ring and the circlip groove. Compare both against yours, and count the teeth. Or leave it with us and send the rego.
Fitting
- Circlip out of the box, splines brushed clean.
- Grease into the joint, boot over it, clamps crimped.
- Axle nut to the Nissan setting for the P12.
- The 44 tooth ring wants to be clean before the sensor sees it.
- Best fitted by a qualified mechanic.
