Description
Outer CV joint for the Nissan Teana and Maxima J32. HDK NI-088, also written NI-88.

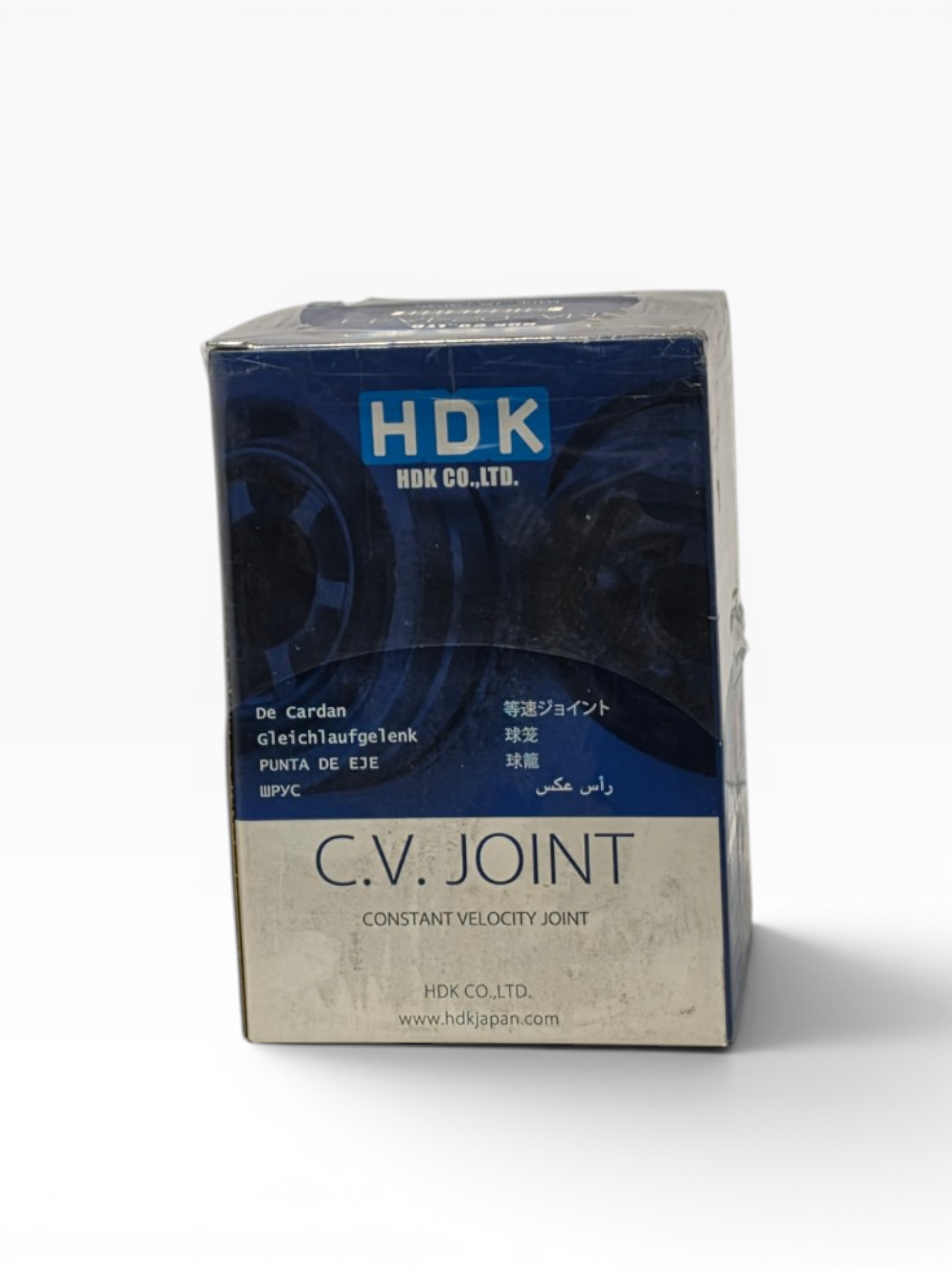

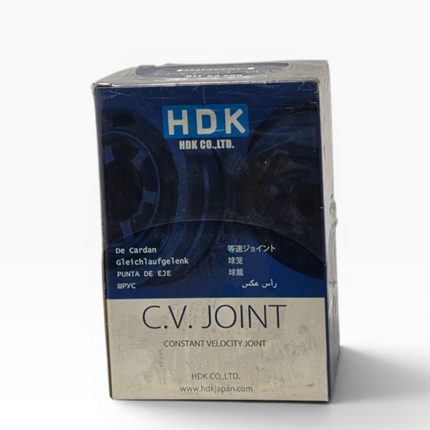

Never fitted, still boxed. Storage shows on the box and not on the part.
The HDK box lists the Maxima and Teana from 2008. It has 27 teeth inside, a 56 mm seal and 32 outer spline teeth. There is no ring fitted.
The same size of joint replaces the genuine Nissan outer joint 39211-1AA0A and 39211-1AA3A. Parts catalogues list it for these cars:
- Nissan Teana J32, 2008 to 2013.
- Nissan Maxima J32, the Teana based Maxima.
- Nissan Murano Z51, 2008 to 2015.
- Nissan Elgrand E52, from 2010.
More than one across the range. Nissan fitted several outer joints to this group. Count the teeth on the one coming off and measure the seal. Or send the rego and we will match it up.
Fitting
- New circlip, and the splines cleaned before it goes on.
- Grease packed in, boot fitted, both clamps done up.
- Axle nut to the torque for the V6.
- Drive it on full lock each way once everything is back together.
- Best fitted by a qualified mechanic.
