Description

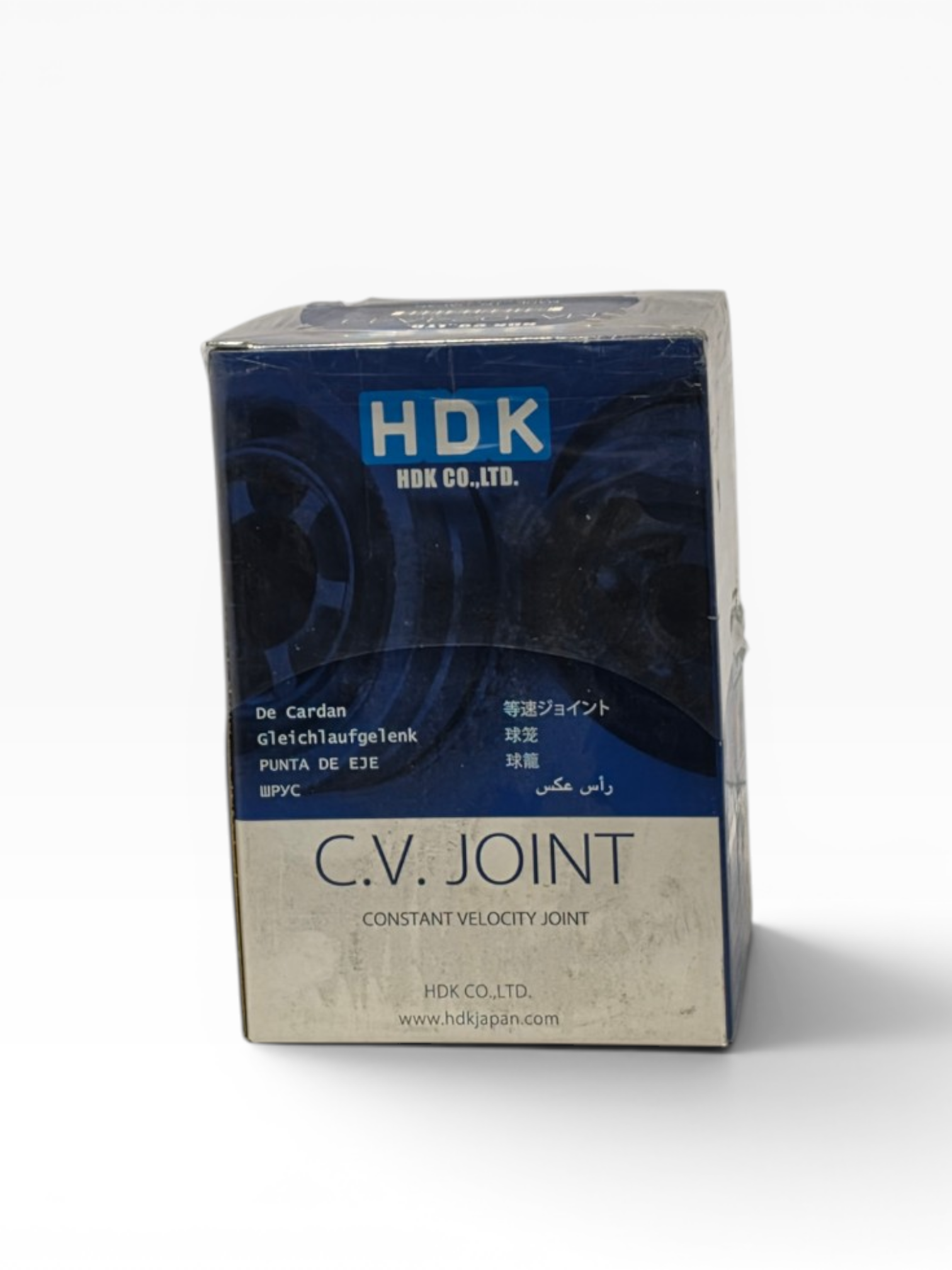

HDK front outer CV joint, part number TO-011. This is the joint that sits inside the front swivel housing on a solid front axle.

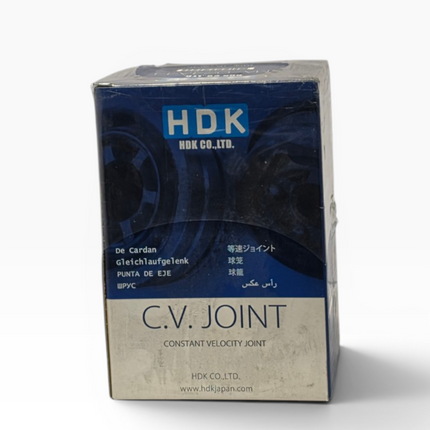

New old stock, never fitted. The carton has been in storage a long time.
It replaces the genuine Toyota joint 43405-60040. That joint has 27 teeth inside, 30 outer spline teeth and a 61.8 mm seal. It is about 240 mm long.
HDK lists it for these Land Cruisers:
- Land Cruiser 70 series HZJ73 and HZJ77.
- Land Cruiser 70 series PZJ70 and PZJ77.
- Land Cruiser Prado LJ71 and LJ78.
Toyota lists 43405-60040 for the 70 series from January 1990 to July 1999. That also covers the HZJ70, HZJ75, FZJ70, FZJ75 and PZJ73.
Check the year before you buy. The 70 series built before 1990 takes a different joint with a smaller bell. So does the coil sprung 70 series from late 1999. Check the year of your truck against the Toyota number on the old joint. Or send us the rego and we will check the year.
Fitting
- Replace the swivel hub seals and bearings while the axle is apart.
- Clean the axle splines and fit a new snap ring.
- Refill the swivel housing with the correct grease.
- Take it out on full lock both ways once the axle is back together.
- Best fitted by a qualified mechanic.
