Description
Outer CV joint for the Toyota Camry, Vista, Celica and Carina ED. HDK TO-012, or TO-12 in some catalogues.

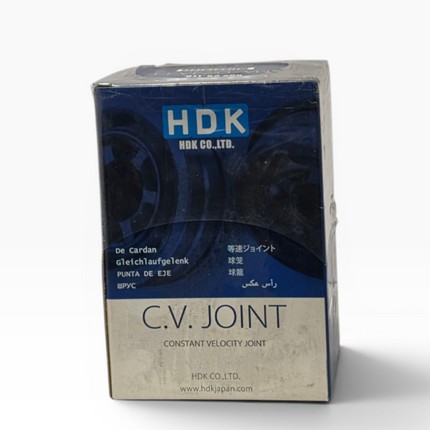

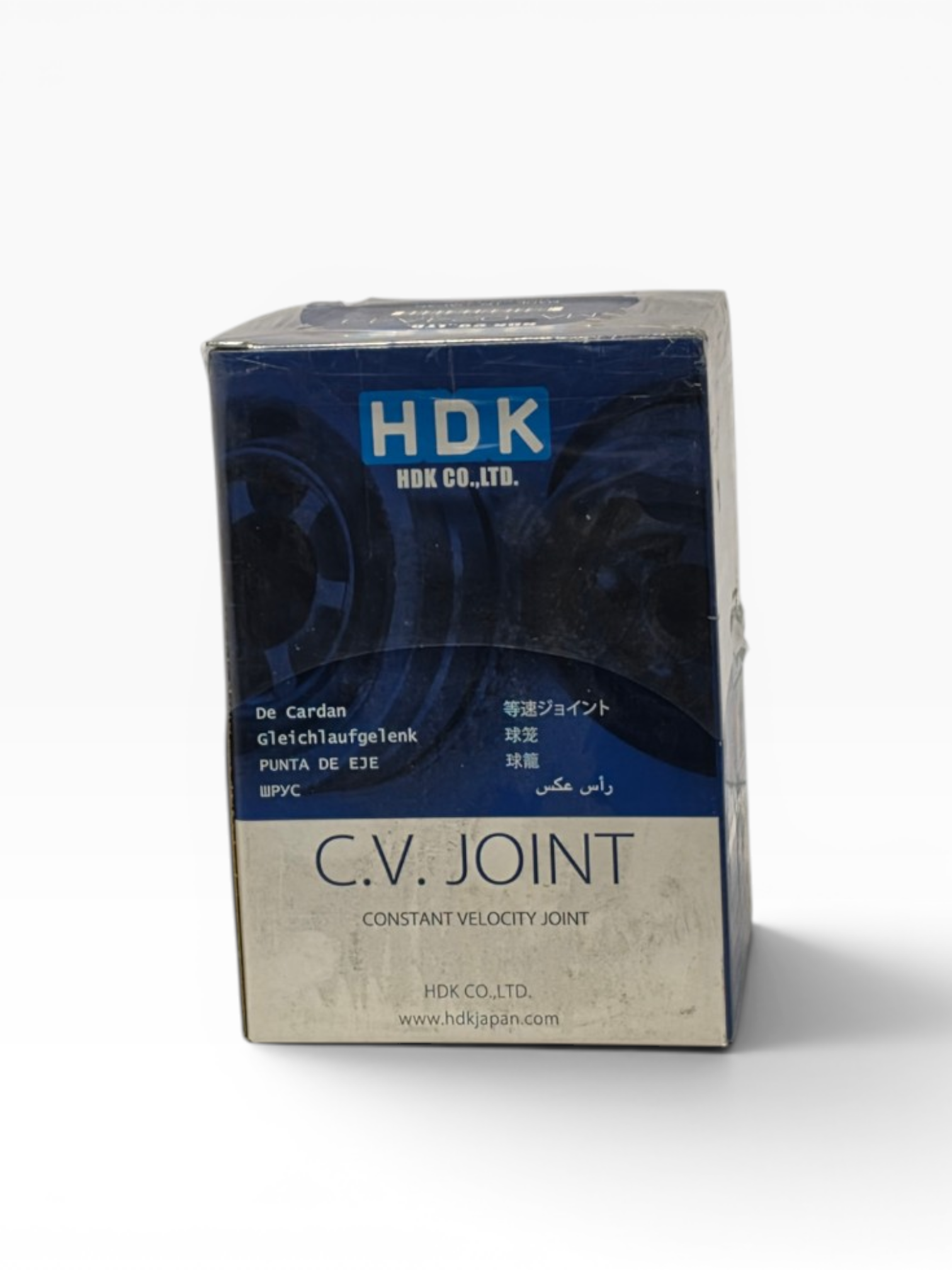

Never fitted. Warehouse stock with an aged box and a clean joint.
It has 27 teeth inside, a 56 mm seal and 26 outer spline teeth. There is no ring on this one. The ABS version is TO-012A48.
It replaces the genuine Toyota outer joint 43410-33010, 43420-33010 and 43410-20240. HDK lists it for these cars:
- Toyota Camry and Vista V20 and V30 series, including CV20, CV30 and SV32.
- Toyota Celica and Carina ED with the 3S-FE engine, 1989 to 1993.
ABS or not. Toyota used more than one outer joint here, and the ABS cars want the A48. Count the splines on yours and check for a ring. Or send the rego and we will sort it.
Fitting
- New circlip. Clean the splines before it goes on.
- Grease in the joint and grease in the boot.
- Do the axle nut up to Toyota's figure.
- Listen on full lock afterwards. A click means something is not seated.
- Best fitted by a qualified mechanic.
