Toyota Corsa, Tercel, Corolla II Outer CV Joint ABS - HDK TO-037A48

Description

ABS outer CV joint for the Toyota Corsa, Tercel and Corolla II. HDK TO-037A48.

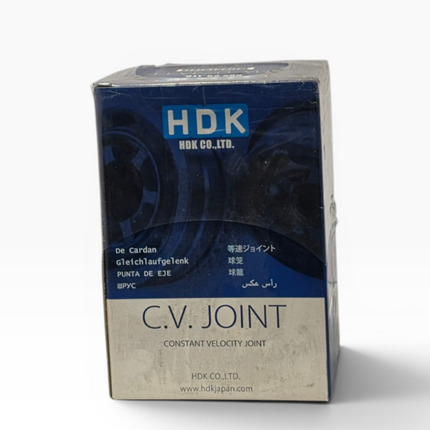

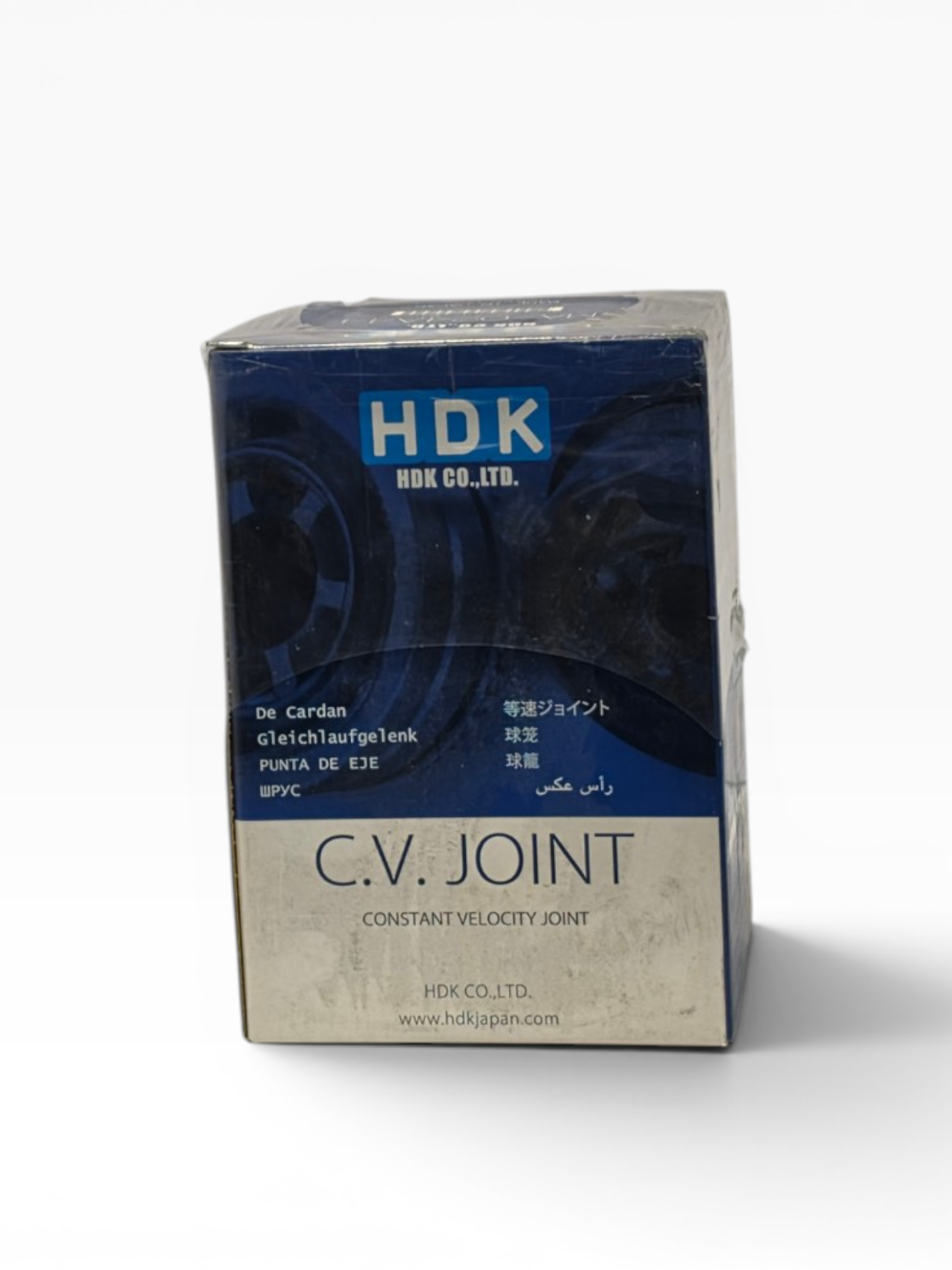

Old stock. Never been fitted. The box shows the years it has sat.

HDK lists it at 23 teeth inside, a 56 mm seal and 26 outer spline teeth. The A48 means a 48 tooth ABS ring.

It replaces the genuine Toyota outer joint 43410-16200 and 43410-16201. HDK lists it for these cars:

  • Toyota Corolla II, Corsa and Tercel L40, 1990 to 1994. Chassis EL41 and NL40.
  • Toyota Corolla II, Corsa and Tercel L50, 1994 to 1999. Chassis EL51 and NL50.
  • Toyota Cynos EL44, 1991 to 1995.

Two sizes here. Some of these cars take a joint with 22 teeth inside. Cars without ABS take a plain joint. Count the teeth inside yours and look for a ring. Or send the rego and we will look it up.

Fitting

  • The circlip is a one time part. Use the new one.
  • Grease the joint, fit the boot, crimp the clamps.
  • Axle nut up to the figure Toyota give.
  • Watch that the ABS light clears before you road test it.
  • Best fitted by a qualified mechanic.

Toyota Corsa, Tercel, Corolla II Outer CV Joint ABS - HDK TO-037A48

Product form

ABS outer CV joint for the Toyota Corsa, Tercel and Corolla II. HDK TO-037A48.Old stock. Never been fitted. The box... Read more

1 in stock Dispatch in 1–3 business days

$69.00 Incl. VAT

    • Guaranteed secure & safe checkout. NZ owned & operated.

      shop pay
    • Free shipping on orders of $100 or more
    • Consumer Guarantees Act protection on every order

    Description

    ABS outer CV joint for the Toyota Corsa, Tercel and Corolla II. HDK TO-037A48.

    Old stock. Never been fitted. The box shows the years it has sat.

    HDK lists it at 23 teeth inside, a 56 mm seal and 26 outer spline teeth. The A48 means a 48 tooth ABS ring.

    It replaces the genuine Toyota outer joint 43410-16200 and 43410-16201. HDK lists it for these cars:

    • Toyota Corolla II, Corsa and Tercel L40, 1990 to 1994. Chassis EL41 and NL40.
    • Toyota Corolla II, Corsa and Tercel L50, 1994 to 1999. Chassis EL51 and NL50.
    • Toyota Cynos EL44, 1991 to 1995.

    Two sizes here. Some of these cars take a joint with 22 teeth inside. Cars without ABS take a plain joint. Count the teeth inside yours and look for a ring. Or send the rego and we will look it up.

    Fitting

    • The circlip is a one time part. Use the new one.
    • Grease the joint, fit the boot, crimp the clamps.
    • Axle nut up to the figure Toyota give.
    • Watch that the ABS light clears before you road test it.
    • Best fitted by a qualified mechanic.
