VW Passat B5, Audi A4 A6 Outer CV Joint with ABS - HDK VW-001A45

Description

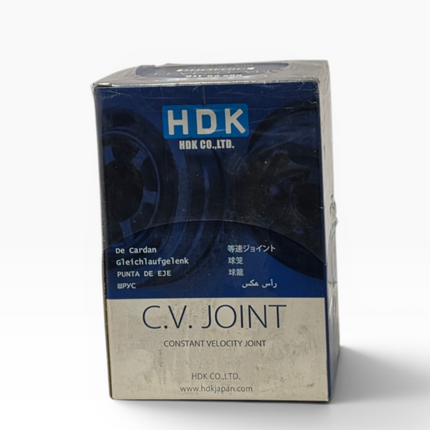

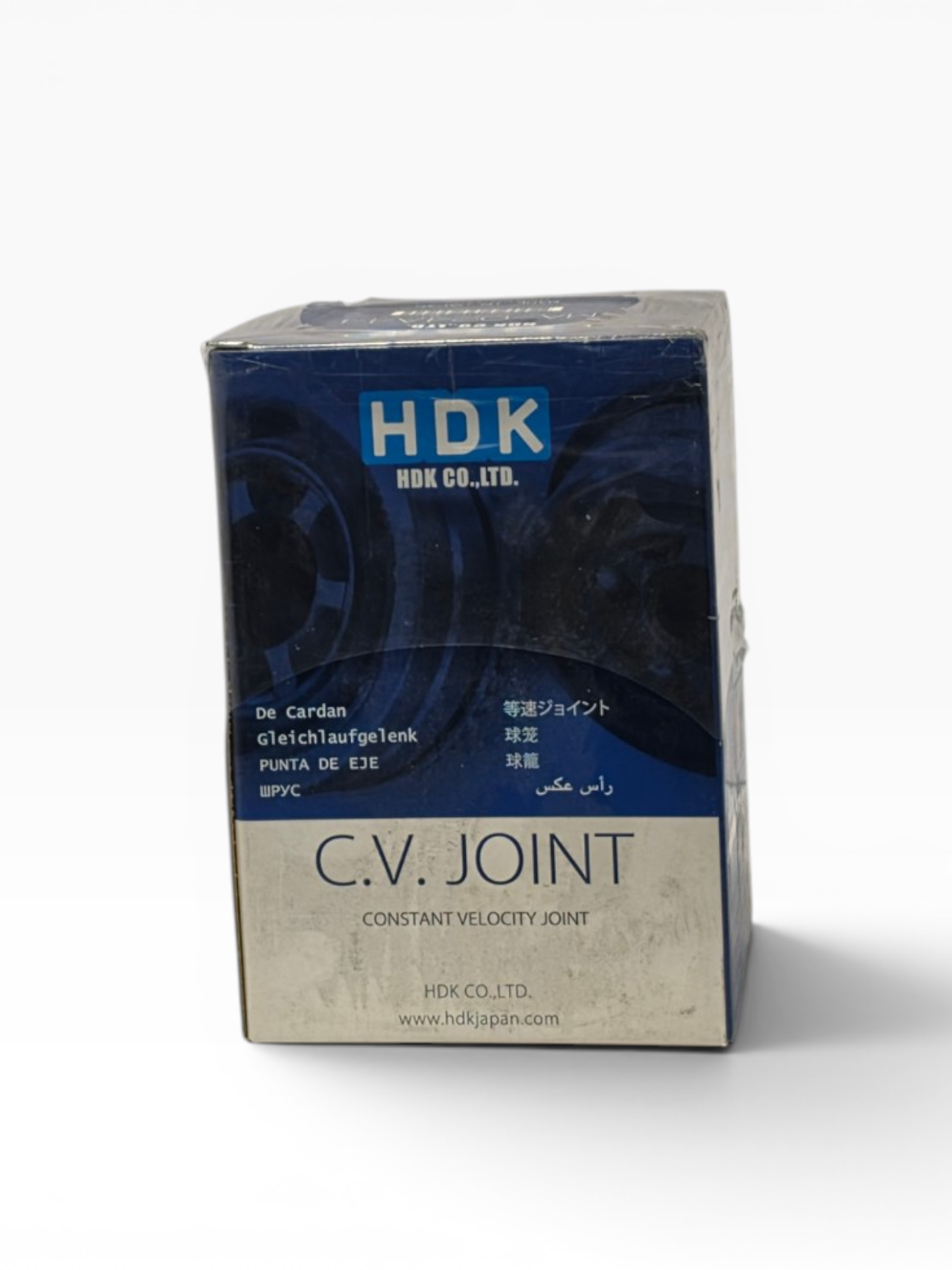

Outer CV joint for the four cylinder Passat and A4, with the ABS ring. HDK VW-001A45, made in Japan, one joint to a box.

Never fitted. The box carries its years and the joint does not.

The label gives A=30, B=53, C=33, D=77.1. So 30 teeth inside, a 53 mm seal and 33 outer spline teeth. The A45 is a 45 tooth ABS ring.

That size matches the genuine VW and Audi outer joint 3B0498099 and 8D0498099. Parts catalogues list that joint for these cars:

  • VW Passat B5 and B5.5, 1997 to 2005, four cylinder engines.
  • Audi A4 B5, 1995 to 2001, four cylinder engines.
  • Audi A6 C5, 1997 to 2005, 1.8 turbo.
  • Skoda Superb, first generation.

Count the splines. The V6 and some diesel versions take a larger joint with more splines. Count them on yours and check for the ABS ring. Or send the rego and we will confirm.

Fitting

  • Find out if your axle bolt is a stretch bolt before you think about reusing it.
  • Work the grease in, then fit the boot and pull the clamps up.
  • Torque the axle bolt to the factory figure.
  • Give the 45 tooth ring a wipe before the hub goes back together.
  • Best fitted by a qualified mechanic.

VW Passat B5, Audi A4 A6 Outer CV Joint with ABS - HDK VW-001A45

Product form

Outer CV joint for the four cylinder Passat and A4, with the ABS ring. HDK VW-001A45, made in Japan, one... Read more

3 in stock Dispatch in 1–3 business days

$99.00 Incl. VAT

    • Guaranteed secure & safe checkout. NZ owned & operated.

      shop pay
    • Free shipping on orders of $100 or more
    • Consumer Guarantees Act protection on every order

    Description

    Outer CV joint for the four cylinder Passat and A4, with the ABS ring. HDK VW-001A45, made in Japan, one joint to a box.

    Never fitted. The box carries its years and the joint does not.

    The label gives A=30, B=53, C=33, D=77.1. So 30 teeth inside, a 53 mm seal and 33 outer spline teeth. The A45 is a 45 tooth ABS ring.

    That size matches the genuine VW and Audi outer joint 3B0498099 and 8D0498099. Parts catalogues list that joint for these cars:

    • VW Passat B5 and B5.5, 1997 to 2005, four cylinder engines.
    • Audi A4 B5, 1995 to 2001, four cylinder engines.
    • Audi A6 C5, 1997 to 2005, 1.8 turbo.
    • Skoda Superb, first generation.

    Count the splines. The V6 and some diesel versions take a larger joint with more splines. Count them on yours and check for the ABS ring. Or send the rego and we will confirm.

    Fitting

    • Find out if your axle bolt is a stretch bolt before you think about reusing it.
    • Work the grease in, then fit the boot and pull the clamps up.
    • Torque the axle bolt to the factory figure.
    • Give the 45 tooth ring a wipe before the hub goes back together.
    • Best fitted by a qualified mechanic.
